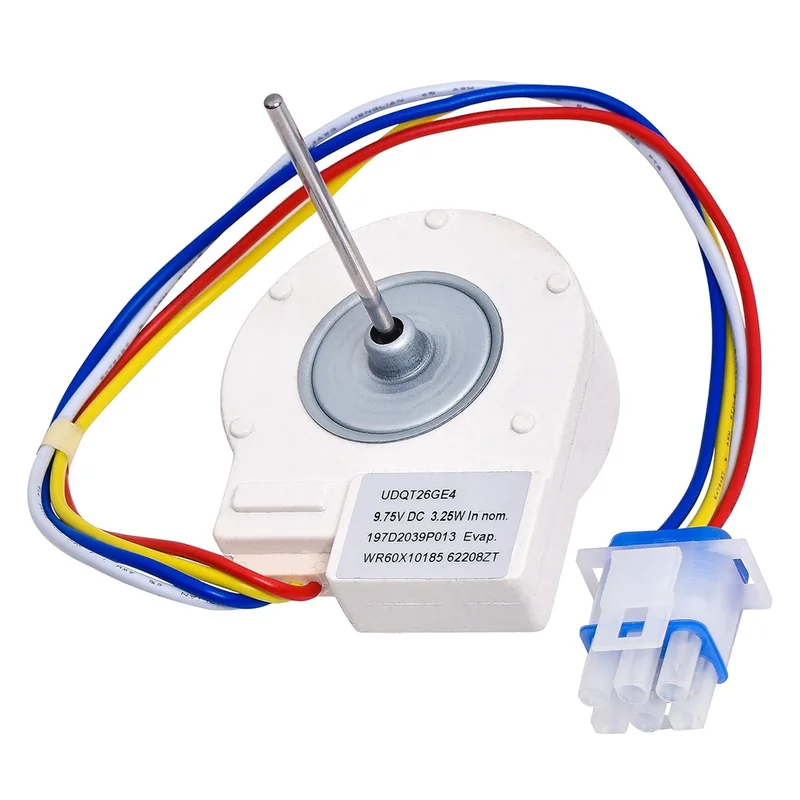

Lifetime Warranty] WR60X10185 Evaporator Fan Motor for GE & Hotpoint Refrigerators – Replaces WR23X10353 WR23X10355 WR23X10364 PS1019114 AP3875639 WR60X10043 WR60X10154

Description

WR60X10185 Evaporator Fan Motor

Key Features

• Function: Circulates air across the evaporator coils to cool the refrigerator and freezer compartments.
• Type: DC Motor
• Specifications: 9.75V DC, 3.25W, 3000 RPM
• Design: Compatible with systems using flammable refrigerants.

Replaces / Cross-Reference Part Numbers

• WR60X10185

Compatibility & Fitment

• Direct replacement for select GE, Hotpoint, and Kenmore refrigerator models.
• Verify compatibility with your appliance’s model number before ordering.

When to Replace

• Refrigerator or freezer compartments are not cooling sufficiently.
• Loud or unusual noises, such as whirring or squealing, are coming from the freezer area.
• The evaporator fan blade is not spinning.
• Excessive frost buildup on the evaporator coils.

Installation Tips

• Disconnect the refrigerator from its power source before starting the repair.
• Access to the motor typically requires removing the back panel inside the freezer compartment.
• It may be necessary to remove shelves and thaw any ice buildup to access the fan assembly.
